Detailed introduction:

BN-100A Infant Radiant Warmer

Brief introduction:

• Microprocessor based servo controlled temperature system
• Temperature displayed by LED
• Alarm functions :
Power failure ,Temperature deviation,
Temperature sensorfailure , Over temperature
• Skin temperature sensor faiIure protect function avoid over temperatu re
• A second thermaI cut-out function for more safety
• Adopts anti-explosion micro crystal quartz infrared radiation tube for its radiation source, the heating is quick and life- span is long
• Transparent protector

Technical data

※ Power supply: AC11 0/220V 60/50Hz
※ Power input: 1000VA
※ Operating condition
Ambient Temperature:18 ℃ -30 ℃
Ambient Relative Humidity: 30% ~ 75%RH
Atmospheric Pressure: 700~1060 hPa
※ Temperature control: 32 ℃ ~ - 38 ℃
※ Temperature control accuracy: ≤ 0.5 ℃
※ Mattress temperature uniformity: < 2℃
※ Skin temperature sensor accuracy: ±0.3 ℃
※ Warm-up time: ≤45min
※ Mattress size: 67CM X54 CM

Safety Control Systems

• Adopts anti-explosion micro crystal quartz infrared radiation tube for its radiation source， the heating is quick and life-span is long
• Alarm functions for safety includes: Power failure , Temperature deviation , Temperature sensor failure , Over temperature
• Temperature deviation can be amended in front panel directly
• A second thermal cut-out function for more safety
• Skin temperature sensor fall protect function avoid over temperature

Standard configuration & Optional parts

Standard configuration:

Main body (including the Radiant source , Control system , Infant bed , Bracket); I.V.pole; Skin temperature sensor; Tray; Mattress; Castors; Transparent protector

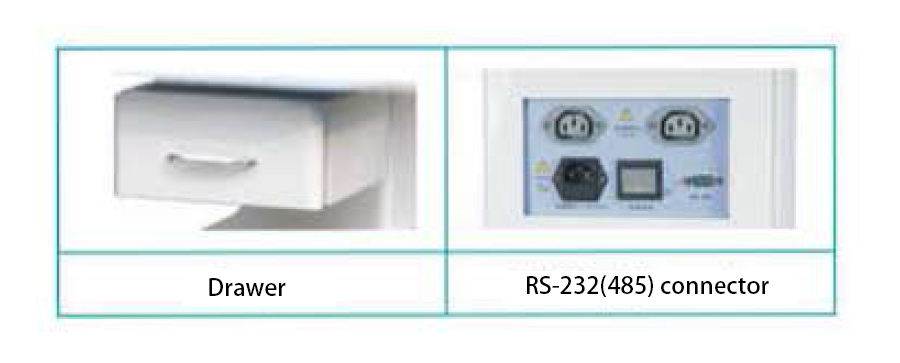

Optional parts:

Drawer, RS-232(485) connector

Transport and storage

Transport and storage：

Environment Temperature: -40℃ ~ +55℃
Environment Relatlve Humidity: ≤ 95%
Atmospheric Pressure : 500-1060hPa

Package：

Each unit is packed one case

Size : 110 * 78 * 86cm　

Gross weight: ≤90KG

ISO9001　　 ISO13485 　　CE
