Detailed introduction:



BN-100 Infant Radiant Warmer (Standard)



Brief introduction:



• Microprocessor based servo controlled temperature system
• The microprocessor-controlled unit allows for three modes pre-warm ， manual or automatic
• APGAR timer to record therapy time
• Alarm functions: Power failure, Temperature deviation, Temperature sensor fallure , Over temperature
• LED observe light adjustable ， brightness adjustable
• Heater head can be adjusted ±90° horizontally
• Convenient X-ray cassette under infant bed
• Tilt angle of infant bed is adjustable
• Transparent protector folded



Technical data



Power supply		AC110/220V 60/50Hz
Power input		1000VA
Operating conditions	Environment tmperature	18℃~30℃
	Environment，relative humidity	30%~75%RH
	Environment air velocity of flow	<0.3m/s
Air Temperature control range		32℃~38℃
Temperature control accuracy		≤0.5℃
Skin temperature sensor accuracy		±0.3℃
Mattress temperature uniformity		< 2.0 ℃
Infant Bed tilt angle		± 10°
Warm-up time		≤45min
Heater head horizontal		± 90°
Distance from heater to mattress		80cm
Mattress size		67cm*54cm
APGAR timer range		≤24h





Safety Control Systems



• Adopts anti - explosion micro crystaI quartz infrared radiation tube for its radiation source the heating is quick and life-span is long
• Alarm functions for safety includes:Power failure. Temperature deviation
• Temperature sensor failure , Over temperature
• Temperature deviation can be amended in front panel directly
• A second thermal cut- out function for more safety
• Skin temperature sensor fall protect function avoid over temperature



Standard configuration & Optional parts



Standard configuration:

Main body(including the Radiant source, Control system , Infant bed ， Bracket X-ray cassette. Observe light ,I.V.pole.Skin temperature sensor Tray. Mattress. Transparent protector ，Castors

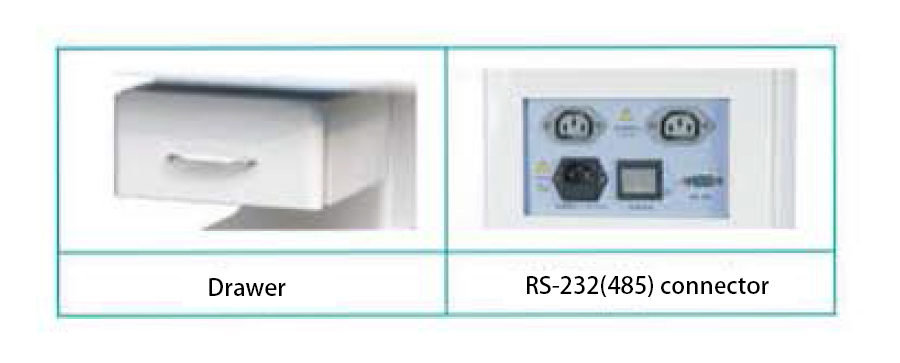

Optional parts:

Drawer, RS-232(485) connector





Transport and storage



Transport and storage：

Environment Temperature: -40℃ ~ +55℃
Environment Relatlve Humidity: ≤ 95%
Atmospheric Pressure : 500-1060hPa

Package：

Each unit is packed one case

Size : 120 * 70 * 96cm　

Gross weight: ≤90KG





ISO9001　　 ISO13485 　　CE
