Detailed introduction:

BB-300 Infant Incubator (Standard)

Function features

• Microprocessor based servo controlled temperature system
• Air temperature, skin temperature , humidity.timer and heat power separately displayed by LED
• Alarm functions : Power failure; Over temperature; Temperature deviation;
• Temperature sensor failure; Fan failure
• Silence/reset button for alarms
• Integral timer to record therapy time
• Humidity is adjustable continuously
• >37 ℃ temperature settin g
• A keypad lock prevent inadvertent changes the setting

Technical data

• Power supply : AC110/220V 60/50Hz
• Power input : 420VA
• Operating conditions:
Environment temperature: 20℃ ~ 30℃
Environment relative humidity: 30%- 75%RH
Environment air velocity of flow: <0.3m/s
• Air Temperature control range: 25℃ - 38 ℃
• Skin temperature control range :32 ℃ - 38 .5℃
• Skin temperature sensor accuracy: ±0. 3℃
• Temperature fluctuation : ±0. 5℃
• Uniformity of mattress temperature : ≤0 . 8℃
• Warm-up time : ≤ 45min
• Internal noise level: ≤55dB
• Humidity display range :1 0% - 95%RH
• Humidity accuracy: ≤10%RH
• Infant bed tilt angle :±10°
• Mattress size: 65cm(L) *37cm(W)
• Trough capacity: 1200ml
• Air filter:0.5um

Product main characteristic

• Trough for pulling and pushing ,which is convenient to add the water and wash
• Fan with low noise and long life - span
• Temperature deviation and over temperature could be amended in front panel directly
• A second thermal cut- out function for more safety
• Skin temperature sensor fall protect function avoid over temperature
• The infant bed inclination angle is adjustable
• Six operating windows, two side access operating windows can be swiveled
• Large size and double wall hood
• Cabinet with three drawers, silence castors

Standard configuration & Optional parts

Standard configuration:

Main body(including the Transparent double hood , Control system, Infant bed , Water trough) ;
Skin temperature sensor; I.V.pole; Mattress; Cabinet ;Silence castors

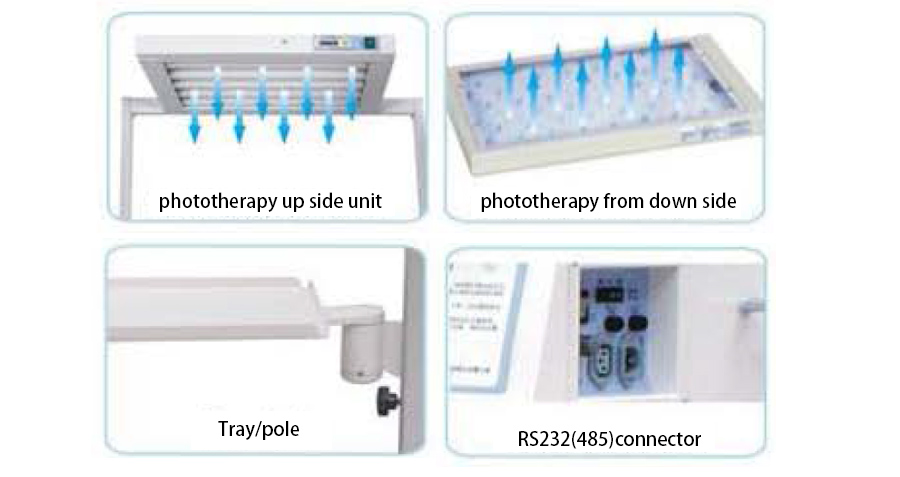

Optional parts:

Phototherapy up side unit;
Phototherapy from up and down sides;
RS232(485) connector; Tray/pole

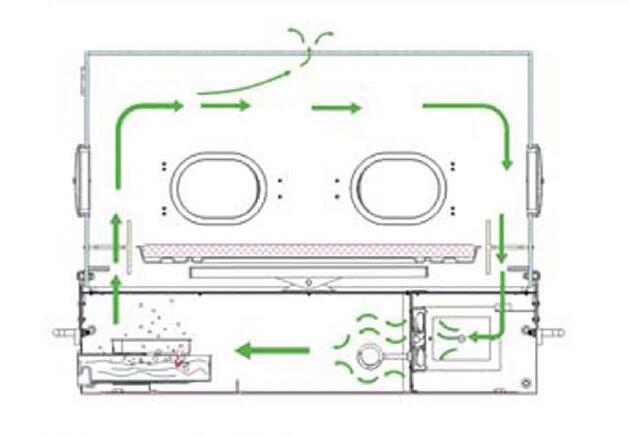

Air circulation system

Transport and storage：

Environment Temp: -10℃ ~ +70℃
Environment Relatlve Humidity: ≤ 80% RH
Atmospheric Pressure : 500-1060hPa

Transport and storage

Package：

Each unit is packed in two wooden crate

Size ( control unit and cabinet ): 123 * 69 * 106cm　　　　 N.W.: 85KG　　　 G.W.: 125KG

Hood: 97 *62 * 68cm　　　　 N.W.: 20KG　　　 G.W.: 50KG

ISO9001　　 ISO13485 　　CE
