Detailed introduction:
BB-100 Infant Incubator (Standard)
Function features
• Temperature displayed by LED
• Alarm functions : Power failure: Over temperature; Temperature deviation
• Temperature sensor failure; Fan failure
• >37℃ temperature setting
• A keypad lock prevent inadvertent changes the setting
• A second thermal cut-out function for more safely
• Humidity is adjustable in two grade
• Heating power displayed on panel
• The infant bed inclination angle is adjustable
| Technical data | ||
| Power supply | AC110/220V 60/50Hz | |
| Power input | 420VA |
|
| Operating conditions |
Environment tmperature | 20℃~30℃ |
| Environment，relative humidity | 30%~75%RH |
|
| Environment air velocity of flow | <0.3m/s |
|
| Air Temperature control range |
25℃~38℃ |
|
| Temperature fluctuation |
±0.5℃ |
|
| Uniformity of mattress temperature |
≤0.8℃ |
|
| Warm-up time |
≤45min |
|
| Internal noise level |
≤55dB(A) |
|
| Infant bed tilt angle |
±10° |
|
| Mattress size |
65cm(L)*37cm(W) |
|
| Trough capacity |
1200ml |
|
| Air filter | 0.5um | |
Product main characteristic
Product main characteristic
• Trough for pulling and pushing ， which is convenient to add the water and wash
• Fan with low noise and long life-span
• Temperature deviation and over temperature ould be amended in front panel directly
• Silence/reset button for alarms
• Six operating windows,two side access operating windows can be swiveled
• Support bracket. convenient and practical
Stamdard configuration
Main body (including the transparent hood. control system. infant bed ， water trough) ;
I .V.pole; Mattress: Support bracket Castors

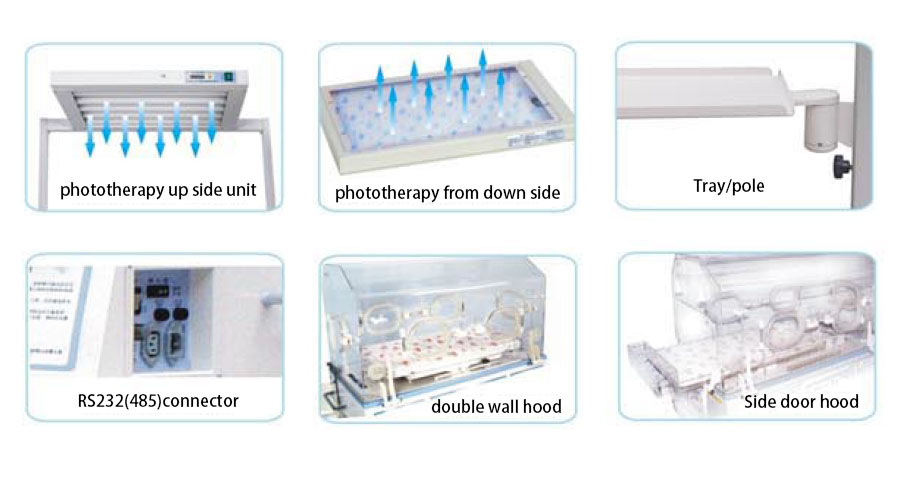

Optional parts:
Phototherapy up side unit ;
Phototherapy from up and down sides
RS232(485)connector: Tray/pole
Infant bed pulled from front and side door;
Infant bed pulled from side door ; Double wall hood
Transport and storage
Environment Temp: -10℃ ~ +70℃
Environment Relatlve Humidity: ≤ 80%
Atmospheric Pressure : 500-1060hPa
Package
Each unit is packed in one wooden crate
Size: 110 * 78 * 86cm
N.W.: 72KG G.W.: 102KG
ISO9001 ISO13485 CE
