Part parameters
- Packaging Details：
- Delivery Time：
- Description：
Detailed introduction:
BN-100 Infant Radiant Warmer (Medium)

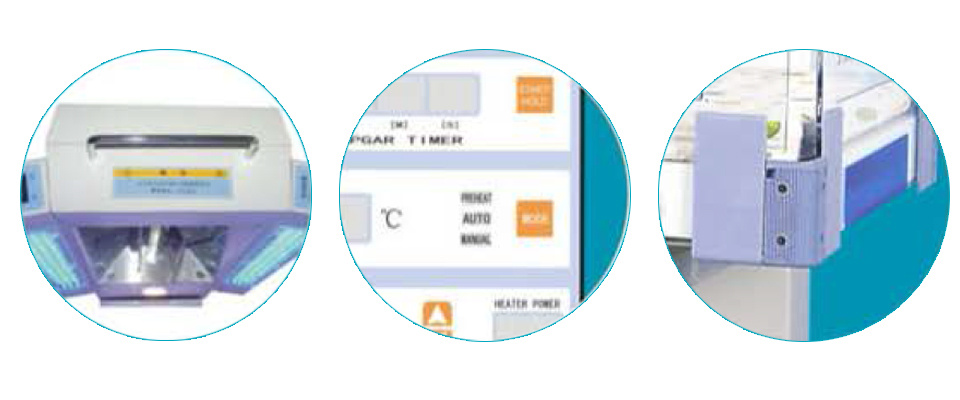

Brief introduction
• Microprocessor based servo controlled temperature system
• The microprocessor-controlled unit allows for three modes: pre-warm , manual or automatic
• APGAR timer to record therapy time
• Alarm functions: Power failure ， Temperature deviation Temperature sensor failure , Over temperature
• LED observe light adjustable ， brightnessa djustable
• Heater head can be adjusted 士90° horizontally
• Convenient X-ray cassette under infant bed
• Tilt angle of infant bed is adjustable
• Transparent protector folded
• LED phototherapy unit
| Technical data | ||
| Power supply | AC110/220V 60/50Hz | |
| Power input | l000VA | |
| Operating conditions | Environment temperature | 18℃- 30℃ |
| Environment relative humidity | 30% - 75%RH | |
| Environment air velocity of flow | <0.3m/s |
|
| Air Temperature control range | 32℃ ~ 38℃ |
|
| Temperature control accuracy | ≤ 0.5℃ |
|
| Skin temperature sensor accuracy | ±0.3℃ |
|
| Mattress temperature unitormity | <2.0℃ |
|
| Infant Bed tilt angle | ±10° | |
| Warm-up time | ≤45min |
|
| Heater head horizontal | ±90° |
|
| Distance from heater to mattress | 80cm |
|
| LED phototherapy light | 2x8VA |
|
| Mattress size | 67cm X 54cm |
|
| APGAR timer range | ≤24h |
|
Safety control Systems
• Adopts anti - explosion micro crystal quartz infrared radiation tube for its radiation source ， the heating is quick and life- span is long
• Alarm functions for safety includes : Power failure, Temperature deviation
• Temperature sensor failure Over temperature
• Temperature deviation can be amended in front panel directly
• A second thermal cut -out function for more safety
• Skin temperature sensor fall protect function avoid over temperature
Standard configuration & Optional parts
Stamdard configuration
Main body （including the Radiant source.Control system ， lnfant bed ， Bracket)
X-ray cassette. Observe light ， I.V.pole. Skin temperature sensor,
Tray ， Mattress ， Transparent protector. Castors
LED Phototherapy unit,
Optional parts:
Drawer ， RS-232(485) connector
Transport and storage
Environment Temperature: -40℃ ~ +55℃
Environment Relatlve Humidity: ≤ 95%
Atmospheric Pressure : 500-1060hPa
Package
Each unit is packed one case
Size:120cmX80cmX95cm
Gross weight :≤ 100KG
ISO9001 ISO13485 CE
