Part parameters
- Packaging Details：
- Delivery Time：
- Description：
Detailed introduction:
BB-100 Infant Incubator (Top grade)
Function features
• Temperature displayed by LED
• Alarm functions: power failure; Over temperature; Temperature deviation Temperature sensor failure; Fan failure;
• >37℃ temperature setting
• A keypad lock prevent inadvertent changes the setting
• Humidity is adjustable continuously
• Heating power displayed on panel
• A second thermal cut-out function for more safety
• The infant bed inclination angle is adjustable
Product main characteristic
• Trough for pulling and pushing ，which is convenient to add the water and wash
• Fan with low noise and long life-span
• Temperature deviation and over temperature could be amended in front panel directly
• Silence/reset button for alarms
• Six operating windows,two side access operating windows can be swiveled
• Cupboard for easy storage
| Technical data | ||
| Power supply | AC110/220V 60/50Hz | |
| Power input | 420VA |
|
| Operating conditions |
Environment tmperature | 20℃~30℃ |
| Environment，relative humidity | 30%~75%RH |
|
| Environment air velocity of flow | <0.3m/s |
|
| Air Temperature control range |
25℃~38℃ |
|
| Temperature fluctuation |
±0.5℃ |
|
| Uniformity of mattress temperature |
≤0.8℃ |
|
| Warm-up time |
≤45min |
|
| Internal noise level |
≤55dB(A) |
|
| Infant bed tilt angle |
±10° |
|
| Mattress size |
65cm(L)*37cm(W) |
|
| Trough capacity |
1200ml |
|
| Air filter | 0.5um | |
Configuration
Standard configuration
Main body(including the transparent hood ，
Control system, lnfant bed, Water trough)
I.V.pole; Mattress: Cupboard: Castors

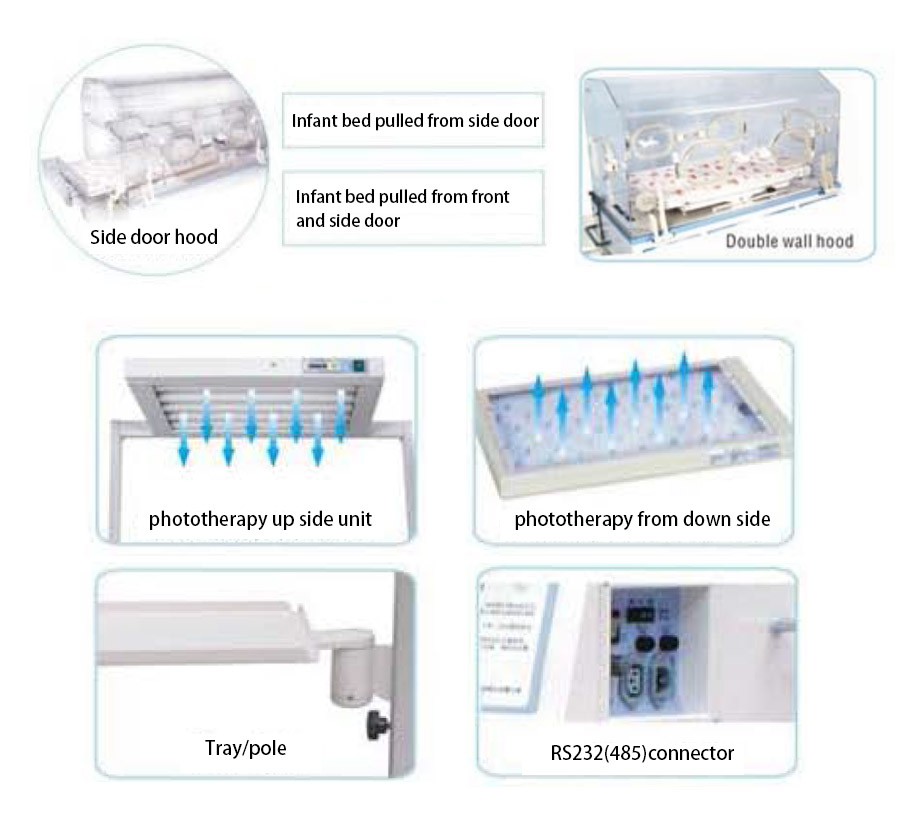

Optional parts
Phototherapy from up and down sides
Phototherapy up side unit; Tray/pole;
RS232(485)connector; Double wall hood;
Infant bed pulled from front and side door;
Infant bed pulled from side door
Transport and storage
Package
Each unit is packed in two wooden crate
※ control unit and cabinet : 120*70*96CM N.W.:80KG G.W.:110KG
※ Hood: 97*56*63CM N.W.:15KG G.W. :40KG
Transport and storage
Environment Temp: -10℃-- +70℃
Environment Relative Humidity: ≤80 %
Atmospheric Pressure: 500-1060hPa
ISO9001 ISO13485 CE
