Detailed introduction:



BB-300 Infant Incubator (Luxurious)



Function features



• Microprocessor based servo controlled temperature systern
• Air temperature, skin temperature, humidity, timer and heat power separately displayed by LED
• Alarm functions: Power failure; Over temperature; Temperature deviation Temperature sensor failure: Fan failure
• Silence/reset button for alarms
• Integral timer to record therapy time
• Humidity is adjustable continuously
• >37 ℃ temperature setting
• A keypad lock prevent inadvertent changes the setting
• Electric height adjustable suit for operation





Technical data



• Power supply : AC 110/220V 60/50Hz
• Power input : 420VA
• Operating conditions:
• Environmen temperature : 20℃~30 ℃
• Environment relative humidity:30 %~75 % RH
• Environment air velocily of flow :< 0.3m/s
• Air Temperature control range: 25℃~38 ℃
• Skin temperature control range:32 ℃- 38.5℃
• Skin temperature sensor accuracy:± 0 . 3 ℃
• Temperature fluction: ± 0 . 5 ℃
• Uniformity of mattress temperature :≤0.8℃
• Warm-up time: ≤45min
• Internal noise level :≤ 55d8
• Humiditv display range: 10% -95 % RH
• Humidity accuracy:≤ 10% RH
• Height adjustable range: 0 - 20CM
• Infant bed tilt angle ± 10°
• Mattress size : 65cm( L) *37cm(W)
• Trough capacity: 1200ml
• Air filter:0.5um



Product main characteristic



• Trough for pulling and pushing, which is convenient to add the water and wash
• Fan with low noise and long life -span
• Temperature deviation and over temperature could be amended in front panel directly
• A second thermal cut-out function for more safety
• Skin temperature sensor fall protect function avoid over temperature
• The infant bed inclination angle is adius table
• Six operating windows.two side access operating windows can be swiveled
• Large size and double wall hood
• Cabinet with three drawers, silence castors





Standard configuration&Optional parts



Standard configuration

Main body(including theTransparent double hood ， Control system Infant bed, Water trough, Electric height adjustable);
Skin temperature sensor; I.V.pole; Mattress; Cabinet: Silence castors

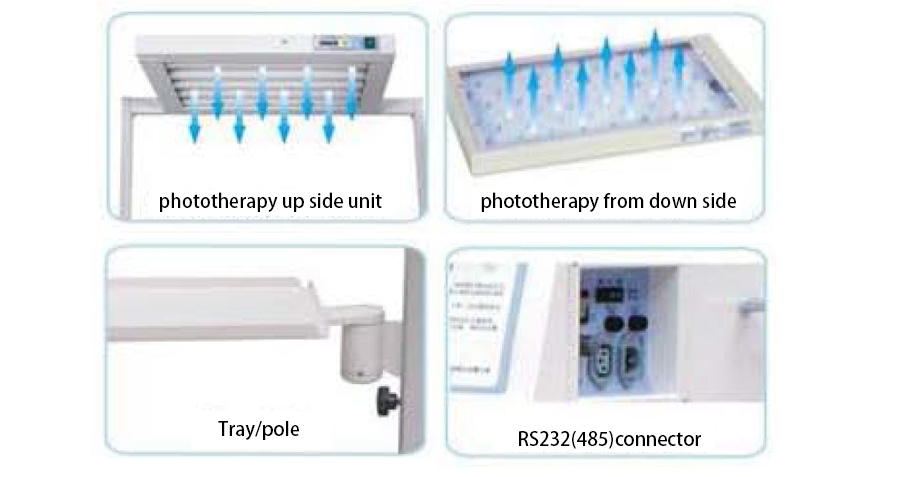

Optional parts

Phototherapy up side unit
Phototherapy from up and down sides
Tray/pole; RS232(485) connector



Air circulation system

Transport and storage

Environment Temp:_- l0 ℃ ~+70℃
Environment Relative Humidity :≤80% RH
Atmospheric Pressure: 500- 1060hPa



Transport and storage

Package

Each unit is packed in two wooden crate
※ Size ( control unit and cabinet) : 123 * 69 * 106CM N.W.: 95KG G.W.: 135KG
※ Hood: 97* 62* 68CM N.W.: 20KG G.W.: 50KG



ISO9001　　 ISO13485 　　CE
