Part parameters
- Packaging Details：
- Delivery Time：
- Description：
Detailed introduction:
BB-100 Infant Incubator (Luxurious)
Function features
• Temperature displayed by LED
• Alarmfunctions:Powerfailure:Over temperature:Temperaturedeviation; Temperature sensor failure;Fan failure
• >37℃ temperature setting
• A keypad lock prevent inadvertent changes the setting
• Humidity is adjustable continuously
• Heating power displayed on panel
• A second thermal cut-out function for more safety
• The infant bed inclination angle is adjustable
Product main characteristic
• Temperature deviation and over temperature could be amended in front panel directly
• Trough for pulling and pushina, which is convenient to add the water and wash
• Slience/reset button for alarms
• Fan with low noise and long life-span
• Six operating windows.two side access operating windows can be swiveled
• Cabinet with three drawers
• Silence castors
Standard configuration
Main body (including the Transparent hood. Control syslem. lnfant bed ， Water trough): i.v.pole; Mattress; Cabinet; Silence castors

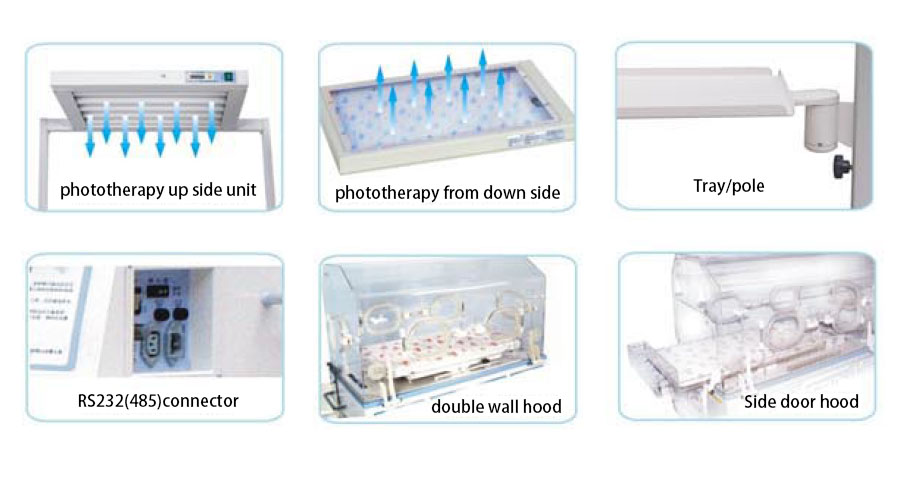

Optional parts:
Phototherapy up side unit; Phototherapy from up and down sides
RS232(485)connector; Tray/pole; Double wall hood
Infant bed pulled from front and side door;
Infant bed pulled from side door
| Technical data | ||
| Power supply | AC110/220V 60/50Hz | |
| Power input | 420VA |
|
| Operating conditions |
Environment tmperature | 20℃~30℃ |
| Environment，relative humidity | 30%~75%RH |
|
| Environment air velocity of flow | <0.3m/s |
|
| Air Temperature control range |
25℃~38℃ |
|
| Temperature fluctuation |
±0.5℃ |
|
| Uniformity of mattress temperature |
≤0.8℃ |
|
| Warm-up time |
≤45min |
|
| Internal noise level |
≤55dB(A) |
|
| Infant bed tilt angle |
±10° |
|
| Mattress size |
65cm(L)*37cm(W) |
|
| Troughcapacity |
1200ml |
|
| Air filter | 0.5um | |
Transport and storage
Environment Temp: -10℃ - +70℃
Environment Relative Humidity: ≤80%
Atmospheric Pressure: 500-1060hPa
Package:
Each unit is packed in two wooden crate
※ Control unit and cabinet : 120 *70*96CM (N.W./G.W: 80KG/110KG)
※ Hood : 97*56*63CM (N.W./G.W.: 15KG /40KG)
ISO9001 ISO13485 CE
